How to spot
the difference between the Esprit Turbo and the N/A
In the latter
part of 1987, Lotus produced 2 Esprit models, the top of the range
Esprit Turbo, at £29,995 and the cheaper Normally Aspirated
"Esprit" at £22,995. Both cars, designed by Peter
Stevens, are visually indistinguishable to the average Person.
So here is a brief guide to spotting the difference between the
2 cars.
The most
obvious visual difference was the 1987 Esprit Turbo had grey coloured
sills and a lower splitter (painted in Lotus' "Vulcan Grey"),
where as the N/A had colour coded bumpers and sills. The Turbo
model featured a glass panel between the rear flying buttress
on the tailgate, where as the N/A had no glass (just an open back).
The Turbo had front fog lamps and an additional internal moulded
splitter, the N/A had no fog lamps or internal splitter. At the
rear of the car there was a horizontally fretted black plastic
panel between the rear brake lights fitted to the Turbo cars,
where as the N/A had a plain black panel. There was a metal ventilation
grill under the rear bumper, to allow better ventilation for the
Esprit Turbo cars. The N/A had 4 lozenge shaped vents cut into
the rear lower bumper. Colour coded wing mirrors where fitted
to the Turbo cars, where as the N/A had black wing mirrors. Finally
the Turbo had a metal badge "Esprit Turbo" on the body
work, bellow the
rear window. The N/A had a metal badge stuck to the rear windows
saying "Esprit."

1987
Lotus Esprit Turbo X180 - Click on image to enlarge

1987
Lotus Esprit Normally Aspirated - Click on image to enlarge

Views
from the three quarter aspect
From
spring 1988 the Esprit Turbo no longer featured a grey valance and
was colour coded to look like the N/A model (The Federal Esprit
Turbo continued to feature grey sills until 1989).
These
days it may be more difficult to differentiate the models apart,
as quite a number of Stevens Esprit's have been re-sprayed and modified
with newer alloy wheels (often from the Esprit S4 or S4s), with
V8 Esprit wings and bumpers, making identification more difficult.

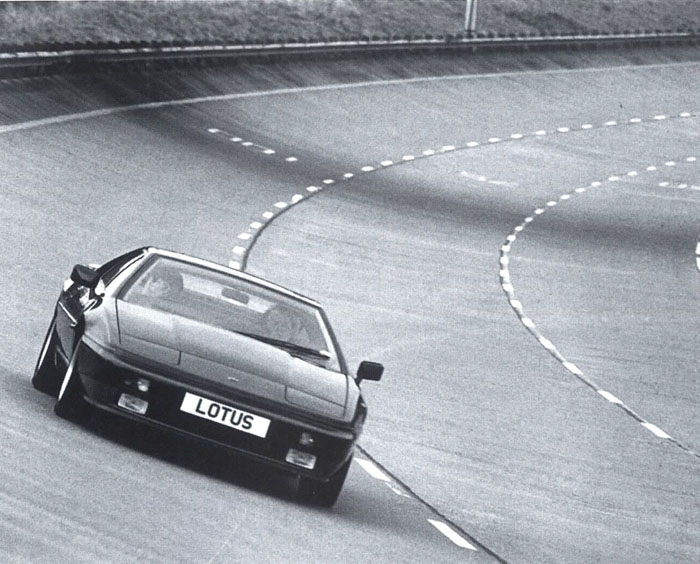

Lotus
Esprit Turbo driving around the Millbrook Proving Ground
